There are many sources of vibration in our daily lives, such as walking, traffic, wind, equipment, earthquakes, etc. Various complaints, discomfort, and fear are caused by these vibrations. This section introduces the countermeasures and products that can be selected to deal with these vibration problems in an easy-to-understand manner for each situation.

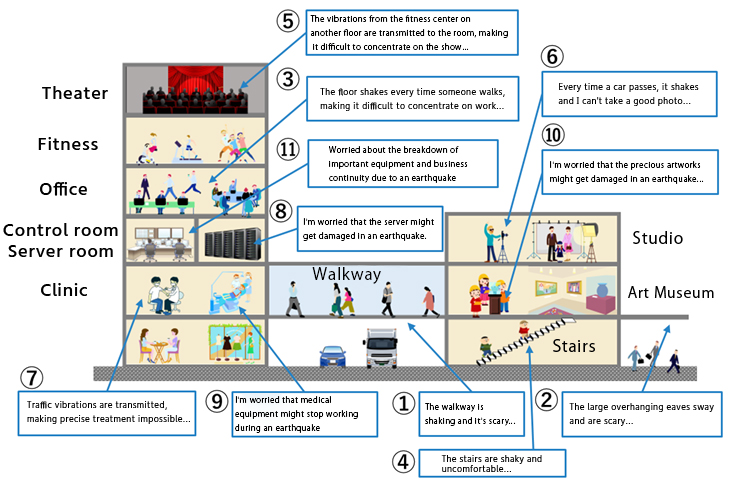

Vibration-related problems in a complex
Click on the problem to go to the page section of countermeasure products!
- I'm afraid of the shaking of the corridor...
- The big overhanging awning shakes and scares me...
- The floor shakes every time someone walks on it, making it hard to concentrate on work...
- The stairs are shaky and uncomfortable...
- I can't concentrate on watching the play because of the vibrations transmitted from the fitness center on another floor...
- It shakes every time a car passes by, making it difficult to take beautiful pictures...
- Traffic vibrations are transmitted and precision treatment is not possible...
- I'm worried that the server will be damaged by the earthquake...
- Worried that an earthquake will shut down medical equipment...
- Worried that the earthquake might damage valuable artworks...
- Worried about failure of critical equipment and business maintenance due to earthquakes...

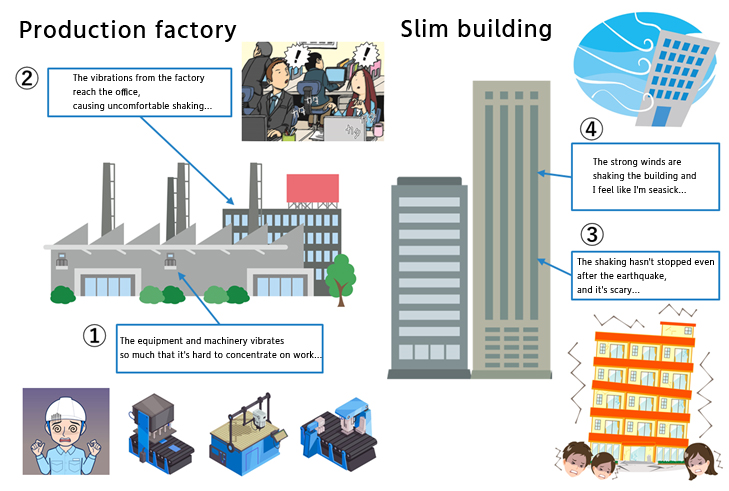

Vibration-related problems in production plants and slim buildings (pencil buildings)
Click on the problem to go to the page section of countermeasure products!
- Equipment machinery vibrates so much that I can't concentrate on my work...
- The vibration of the factory is transmitted and the office shakes uncomfortably...
- Scary that the shaking didn't stop after the quake...
- Strong winds make the building sway and I feel like I'm seasick...
Improves the environment by reducing unpleasant shaking! Vibration Damping Device TMD
[Scenes of use]
Vertical (up-and-down) vibration countermeasures for office buildings and commercial facilities, such as floor swaying, cross corridors, eaves, etc.
- When installed at locations with vibration problems, the reaction force of the weights suppresses shaking.
- It is effective for everything from bothersome vibrations such as walking and equipment to large vibrations such as earthquakes.
- The TMD base is installed by bolting together the small beam and the TMD base. No structural changes to the building are required, and the design is not compromised because it is hidden behind the floor.
- TMD Product Page
See the effectiveness of the measures in the case study!
- The large overhanging eaves also provide earthquake protection without changing the design!
- Reduces unpleasant vibrations in crossing corridors!
- Realizes a comfortable office environment! Prevents walking vibration on long-span floors
- Avoid vibration problems caused by multiple people exercising in a fitness studio!
- Concerned about floor shaking caused by operating vacuum pumps! Improve the working environment of your factory
- Reduces unwanted swaying! Cantilevered Floor Walking Vibration Countermeasures
Example of TMD installation
Useful contents (available for download after free registration as a premium member)
Introduction of TMD Series
This page explains the "features, principles, structure, installation examples, effects, etc." of Yacmo's TMDs, which can handle a wide range of vibration from small vibrations caused by walking to large shaking caused by wind and earthquakes. Read this to deepen your understanding of TMDs.
Resolving TMD Questions! Frequently Asked Questions Q&A
Frequently asked questions about TMD are summarized in a Q&A format. Please use it as a reference for product selection and countermeasures.
Points and weaknesses of TMD that you need to know in order to achieve optimal results.
TMD is often used as an effective floor sway countermeasure, but it does not work for all types of sway. This section explains the principles of TMD and provides an easy-to-understand explanation.
Back to the map of the complex's problems
Back to the map of problems in factories and buildings
Measures can be taken even after occupancy! Ultra-Thin Vibration Damping Device Floor Mate
[Scenes of use]
Floor swaying in offices (walking, traffic vibration, etc.), vibration control for stairs, etc.
- Ultra-thin design fits under OA floors.
- Installation is simply by placing it under the panel, making it ideal for addressing vibration issues after occupancy.
- Its low profile allows it to be installed under stair treads and landings. It is also effective when installed at an angle.
See the effectiveness of the measures in the case study!
Example of Floormate installation (under OA floor)
Example of Floormate installation (under OA floor)

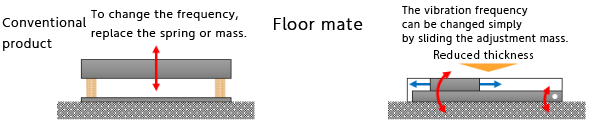

Comparison with conventional products
Useful contents (available for download after free registration as a premium member)
Introduction of TMD Series
This page explains the "features, principles, structure, installation examples, effects, etc." of Yacmo's TMDs, which can handle a wide range of vibration from small vibrations caused by walking to large shaking caused by wind and earthquakes. Read this to deepen your understanding of TMDs.
How to achieve both design and vibration control
Buildings are required to be not only comfortable but also well designed, but they tend to have long spans, no pillars, and other structures that are prone to vibration. This section introduces measures to reduce vibration while ensuring design quality.
Vibration control for existing buildings "after the fact
Increasingly, vibration problems are occurring later due to layout changes, changes in use, and new installation of equipment and machinery. However, the usual vibration control measures would require large-scale construction work. This section introduces the features and installation examples of Yacmo's vibration control system, which enables "after-the-fact" vibration control measures for existing buildings.
Back to the map of the complex's problems
Back to the map of problems in factories and buildings
Small size solves a wide range of floor sway problems! AMD Vibration Damping Device
[Scenes of use]
Floor vibration in offices (walking, traffic vibration, etc.), equipment and machinery vibration in factories, vertical vibration control in fitness clubs, etc.
- Because it is motor-driven and has a large thrust, it is smaller and more effective than a TMD.
- Covers a wide range of vibration, from floor shaking in offices to large vibrations in factories
- Compact size allows installation in available space. It is perfect for vibration control later on.
See the effectiveness of the measures in the case study!

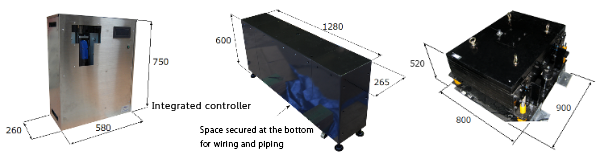

AMD (Left: Mass 50 kg type, Center: Mass 600 kg type, Right: Mass 1000 kg type)
Useful contents (available for download after free registration as a premium member)
Introduction to AMD Series
This page introduces the features and installation examples of AMDs, which solve various vibration problems with power in a space-saving manner. We summarize the key points of AMD, which can deal with a wide range of unpleasant vibrations such as walking vibration, equipment-machine vibration, and vertical vibration at live performances, etc.
AMD Questions Resolved! Frequently Asked Questions Q&A -Floor Shaking Countermeasures
Frequently asked questions about TMD are summarized in a Q&A format. Please use it as a reference for product selection and countermeasures.
Vibration control for existing buildings "after the fact
Increasingly, vibration problems are occurring later due to layout changes, changes in use, and new installation of equipment and machinery. However, the usual vibration control measures would require large-scale construction work. This section introduces the features and installation examples of Yacmo's vibration control system, which enables "after-the-fact" vibration control measures for existing buildings.
Back to the map of the complex's problems
Back to the map of problems in factories and buildings
Comfortable and secure even in strong winds and earthquakes! Horizontal TMD/AMD
[Scenes of use]
Wind sway, traffic vibration, and earthquake protection for mid-rise and slender buildings.
- Various anti-rolling measures are available. Quickly reduces swaying and is effective against post-earthquake swaying.
- Since it is simply installed on the rooftop or upper floor, it can be used effectively without disturbing the space inside the building.
- The size of the weights varies from several tens of tons to over 100 tons depending on the subject of the shaking to be suppressed.
See the effectiveness of the measures in the case study!

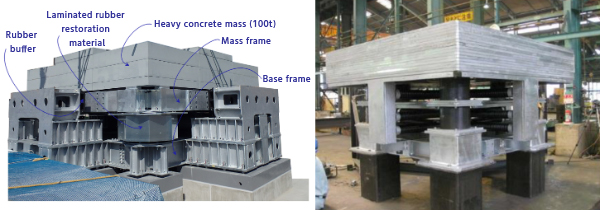

Horizontal TMD (left: for earthquake protection, right: for wind sway protection)
Useful contents (available for download after free registration as a premium member)
Introduction of Horizontal TMD
Features and installation examples of horizontal TMDs that reduce lateral sway from earthquakes, strong winds, and traffic vibrations are introduced.
Protecting Buildings and Occupants with "Earthquake Resistance + Vibration Damping
Seismic countermeasures alone may result in large interior shaking that may cause human casualties, or damage that may cause the building to not last long. The following is an easy-to-understand summary of common misconceptions about earthquake resistance and the advantages of combining earthquake resistance and vibration control.
Wind sway countermeasures for mid- and high-rise buildings increase occupant performance!
Wind sway can be a problem not only in skyscrapers but also in long, narrow mid-rise buildings that are built on narrow lots in urban areas. This section introduces the causes of wind sway in mid-rise buildings and examples of horizontal TMD installations that are effective as wind sway countermeasures.
Back to the map of problems in factories and buildings
Protects important data, medical equipment, and cultural assets from earthquakes!
Seismic isolators: Server Utena, Medical Utena, Angel Utena
[Scenes of use]
Earthquake protection for server rooms, clinics, art galleries, museums, etc.
- The circular arc rail automatically returns to the original position after an earthquake, preventing the overturn due to insufficient stroke caused by aftershocks without human intervention.
- The server utensils do not protrude from the rack, allowing for space-saving installation.Server Utena Product Page
- Medical Utena is equipped with a stainless steel cover to prevent dripping and rusting.
- Angel Utena's compact size of 50mm thick & simple design allows for smart display. Angel Utena Product Page
See the effectiveness of the measures in the case study!

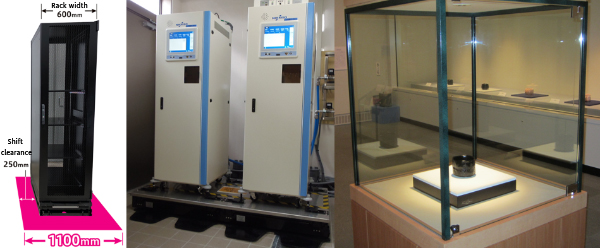

Seismic isolators: Server Utena, Medical Utena, Angel Utena
Back to the map of the complex's problems
Back to the map of problems in factories and buildings
Please consider this for critical equipment rooms that must not be allowed to stop functioning even in the event of an earthquake!
Floor Utena (Seismic isolation OA floor)
[Scenes of use]
Earthquake countermeasures for server rooms, control and command rooms, etc.
- Seismic isolation base and OA floor are integrated into a seismic isolation floor, which enables lower flooring compared to ordinary seismic isolation floors.
- Seismic isolation performance is not affected by the loaded load.
- After the earthquake, the system naturally returns to its origin.
- There are no steel beams with one-of-a-kind specifications, low cost, and short delivery and construction times.
Floor Utena

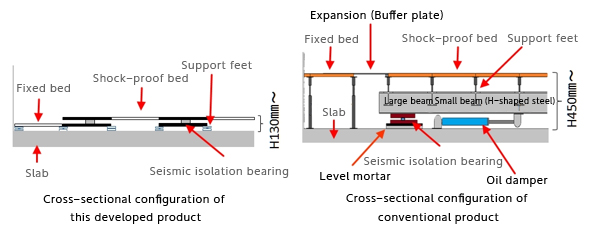

Comparison with conventional products
Back to the map of the complex's problems
Back to the map of problems in factories and buildings
If you have any technical questions or would like to discuss costs, please contact us.
