Seismic isolators are used to protect server racks from earthquakes, and are installed under server racks to protect IT information.
It has passed vibration tests using various seismic waves, including Kobe waves (Great Hanshin-Awaji Earthquake).
It automatically returns to near the origin after an earthquake, and can cope with frequent earthquakes after a major quake.
  Maintenance free, no running costs.

Product Overview

forte

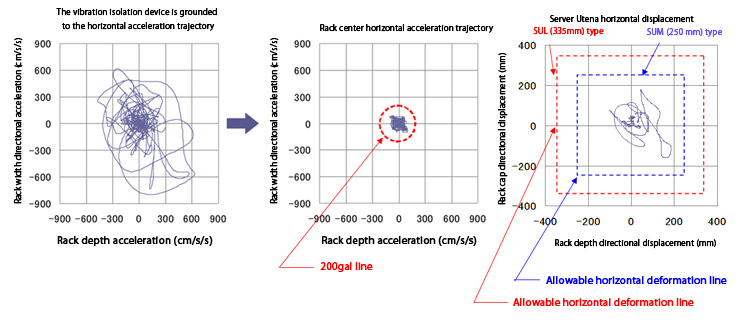

Kobe wave: "818gal" reduced to "140gal

The following table shows the vibration test results for the 1995 Hyogo-ken Nanbu Earthquake (Great Hanshin-Awaji Earthquake).

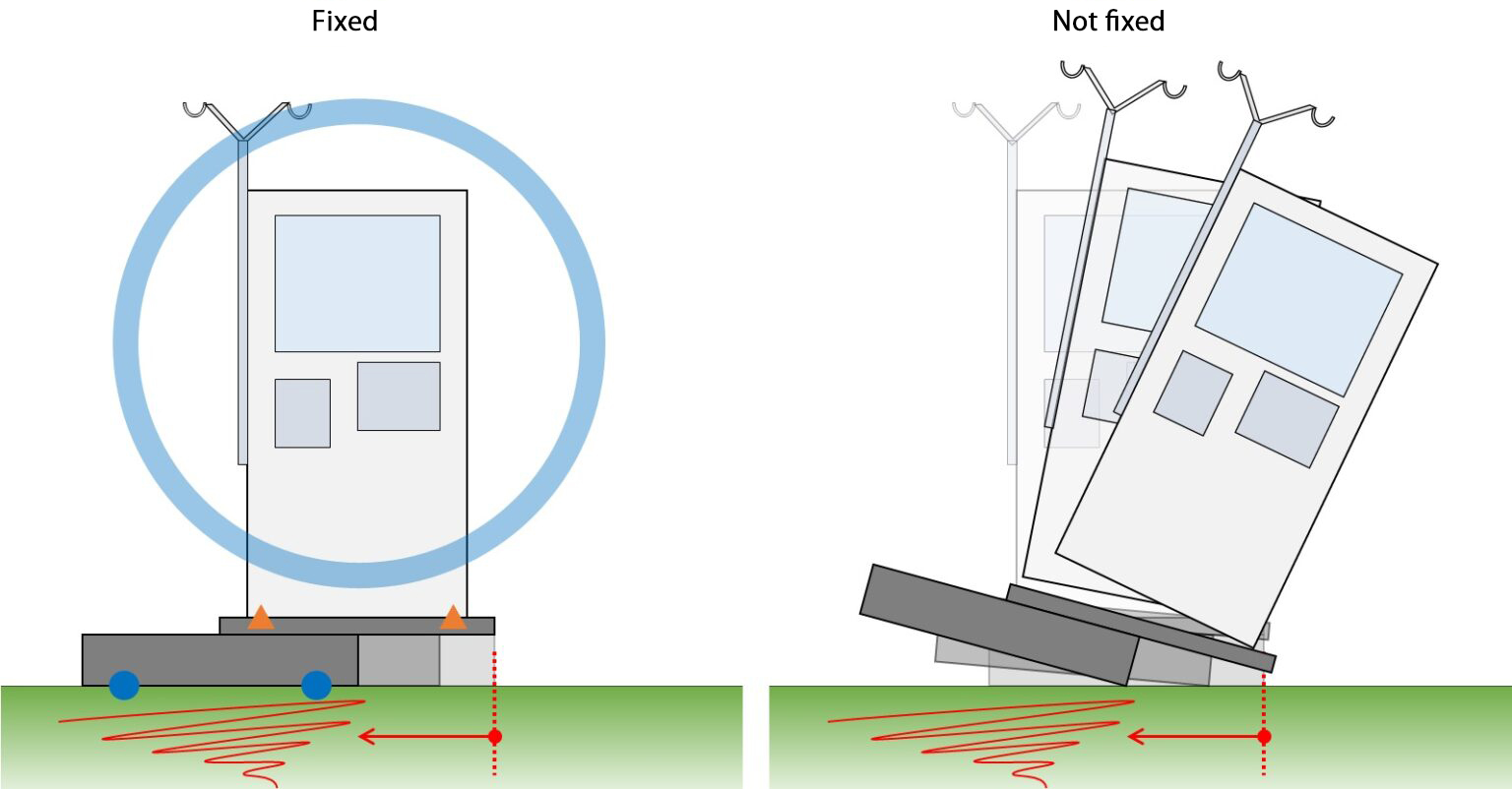

Fail-safe design

It is also possible to secure the seismic isolator and mounted equipment. This reduces the risk of tipping over in the event of an earthquake that exceeds the seismic isolation performance range. (Depending on installation conditions, anchoring of the seismic isolators or use of the optional anti-tipping plate is recommended.)

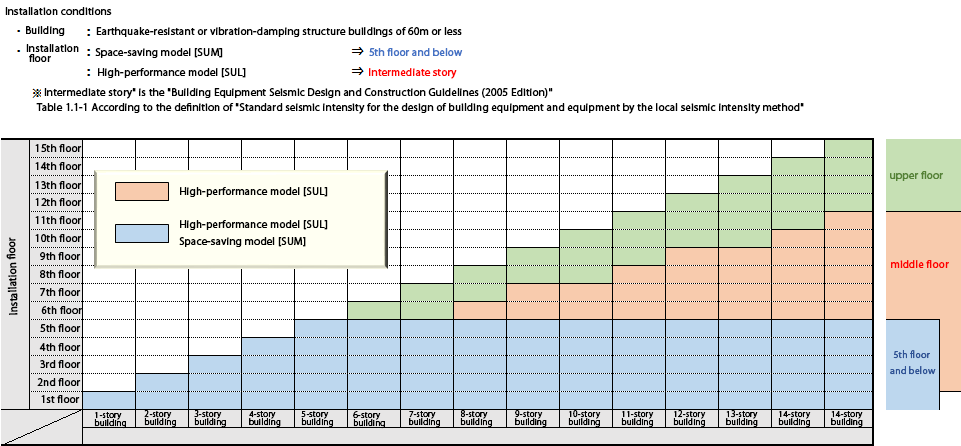

Can be installed on intermediate floors

 The high-performance model [SUL] can be installed on intermediate floors, which have been difficult to install in the past due to stroke problems.

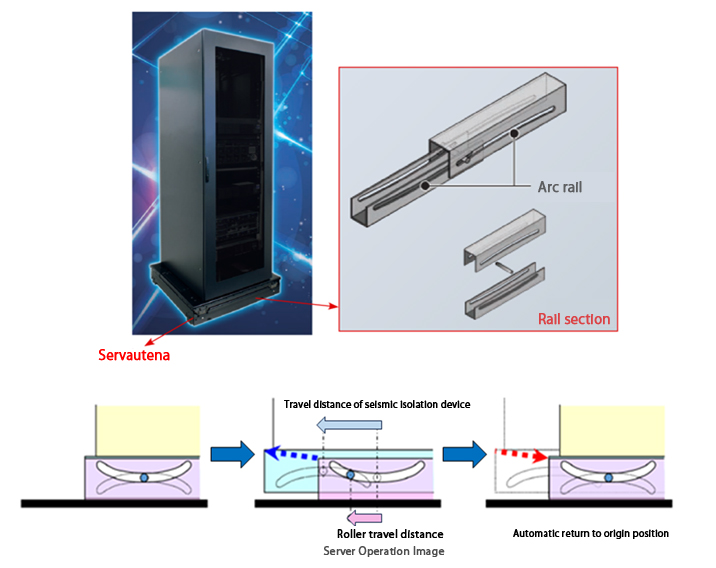

Return-to-home system to cope with frequent earthquakes after a major quake.

Because of the circular arc rail, the seismic isolator returns to its point of origin by gravity when the seismic shaking ceases. Therefore, the performance remains unchanged even in frequent earthquakes after a major quake.

Seismic isolators in a state that is far from their original point of origin will not perform as well as they should in the next earthquake, increasing the risk of tipping over or damaging the mounted equipment.

Video materials (using YouTube)

Server Utena seismic isolation performance test
This is a video image when shaken by various types of seismic waves at 100%.
Earthquakes were reproduced by the 3D vibration test system "DUAL FORCE" (NTT Facilities, Inc.).

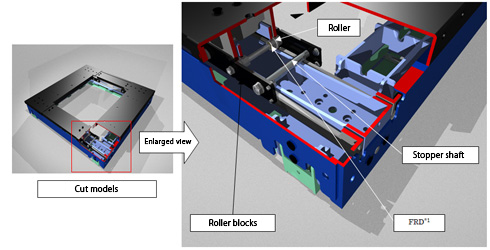

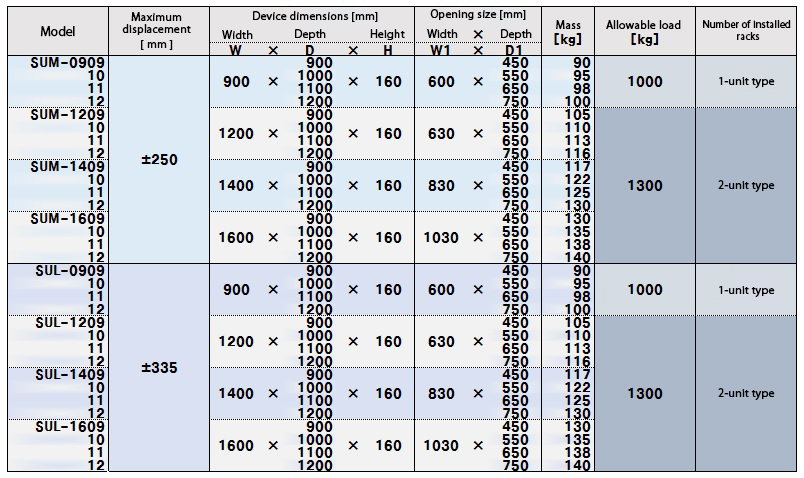

Structure and Specifications

Example of Construction

Case Studies

Download Technical Information
