Product name
Server Utena
model number
SURシリーズ
SUR-0609,SUR-0610,SUR-0611,SUR-0612
SUR-0709,SUR-0710,SUR-0711,SUR-0712
SUZシリーズ
SUZ-0609,SUZ-0610,SUZ-0611,SUZ-0612
SUZ-0709,SUZ-0710,SUZ-0711,SUZ-0712
This device prevents server racks from tipping over in the event of an earthquake, and at the same time serves to reduce the acceleration applied to the racks for data protection.
This is an improved version of our server utensil SUM and SUL, with a smaller footprint and higher load capacity.
Product Overview
forte
- It is maintenance-free, so there are no running costs after installation.
- The centering function (resilience) provided by the arc rails enables the system to withstand frequent earthquakes after major earthquakes.
- The SUR series is a direct mounting type with a stroke of 250 mm. Simply place the server rack on the rubber rubber surface of the server utensil.
- The SUZ series is a [fixed type] with a stroke of 250 mm. The server containers and server racks are bolted together to reduce the risk of servers tipping over, even in the event of an unexpected earthquake that exceeds seismic isolation performance.
- Kobe wave: "818gal" reduced to "140gal
The following table shows the vibration test results for the 1995 Hyogo-ken Nanbu Earthquake (Great Hanshin-Awaji Earthquake).
Earthquake acceleration and acceleration trajectory on seismic isolators
Server Utena Horizontal Displacement
(a) JMA Kobe Wave Acceleration
(b) JMA Kobe wave displacement
Improvements over conventional products

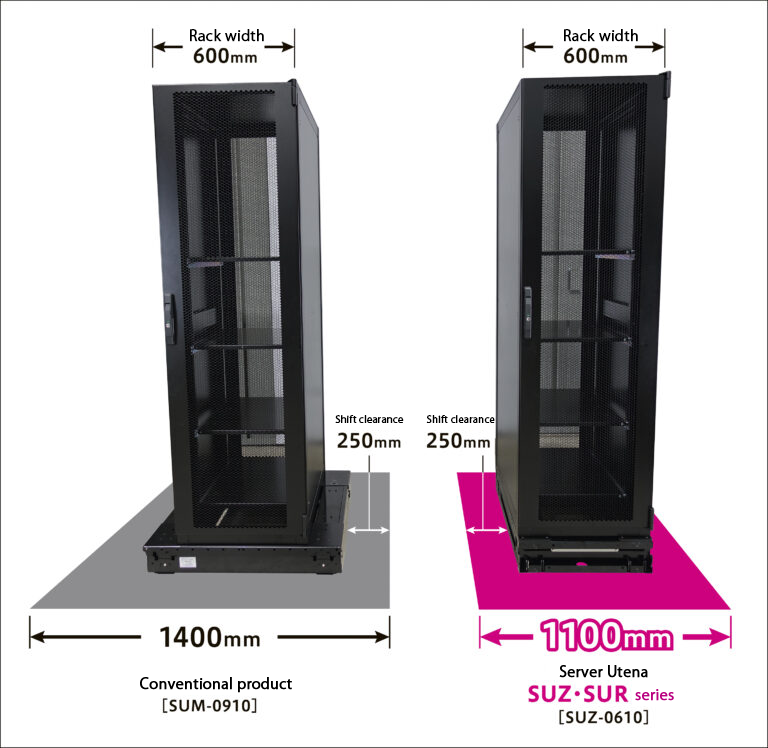

We have aligned the same size to the size of the rack.
The rack and seismic isolation device are the same size, so they can be installed in a space-saving manner.

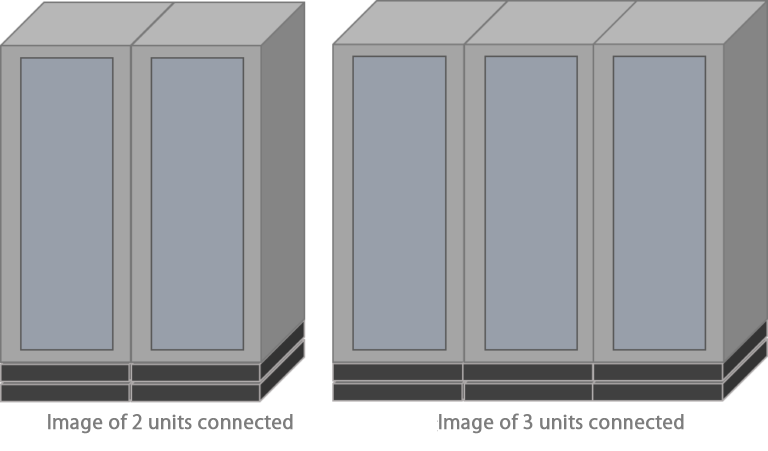

No extra space is required when connecting two or more units.
Even when multiple racks are connected, no extra space is required to save space.

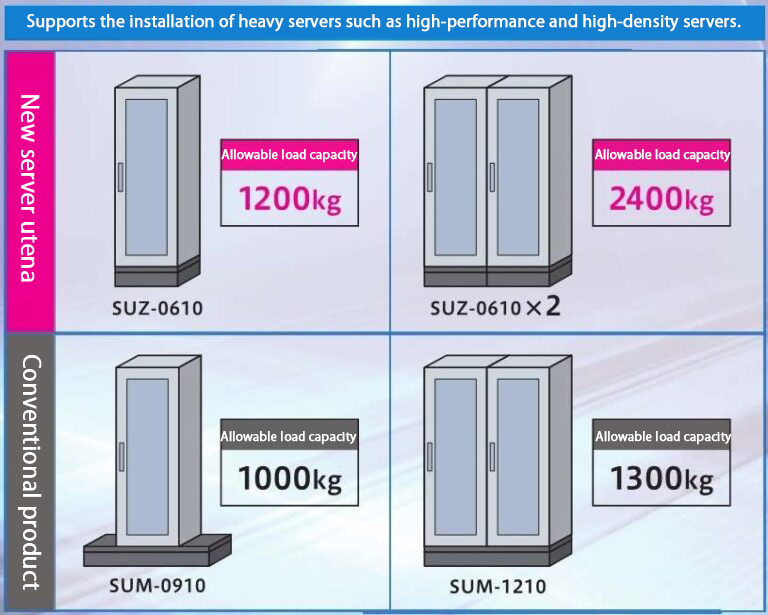

The load capacity has been increased.
Compared to conventional products, it can load servers with high load capacity. 1.2 times as many servers can be loaded in one type, and two servers can be isolated from seismic vibration.
When the load capacity is doubled, the load capacity is about twice that of the conventional product. (One conventional 2-unit type and two new models,
Prices remain the same.)
Video materials (using YouTube)
NEW Server Utena "SUZ/SUR" series
This is a video image when shaken by various types of seismic waves at 100%.
The earthquake was reproduced using a large triaxial simultaneous seismic test device with electrodynamic system (in cooperation with Air Water Disaster Prevention Inc.).

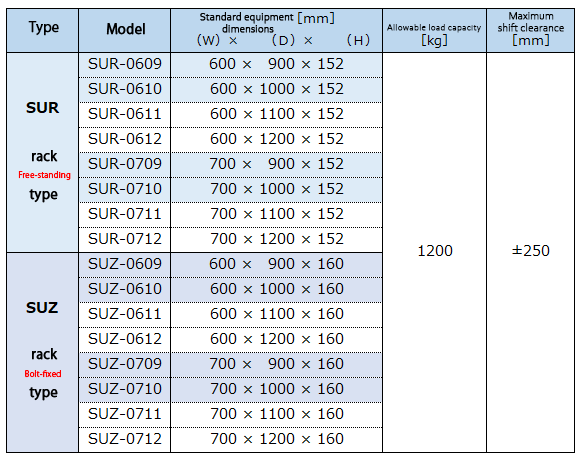

Structure and Specifications

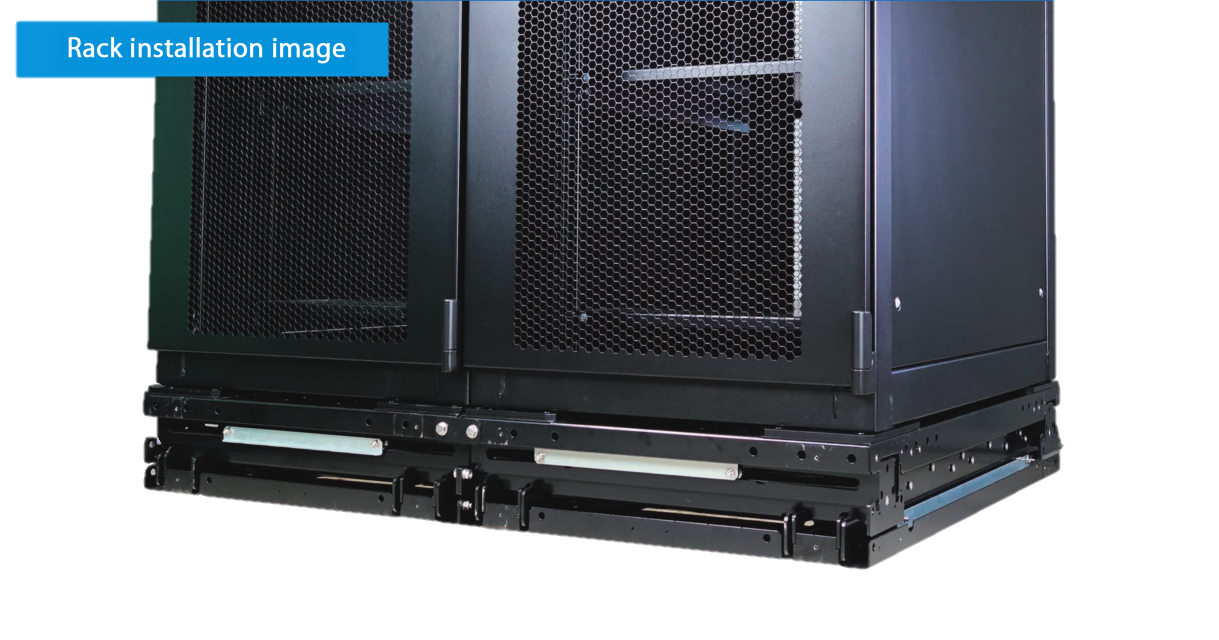

- The upper and lower rails expand the operating displacement in spite of its compact size.
- The friction type damper (friction roller damper) changes the amount of damping in accordance with the loaded load. In addition, the use of arc rails ensures stable seismic isolation performance regardless of the loaded load.
- Since the upper plate and rails do not separate, they will not come off and topple over even in the event of an earthquake that exceeds the seismic isolation performance.
