Product name
Harmony panel
standard
BSK-B type
Conforms to the "Design and Estimation Guidelines for Temporary Soundproofing Equipment" of the Soundproofing Equipment Association of Japan
This is a unit-type soundproof house that uses column steel-frame-integrated panels with high sound insulation performance.
The unit-type design allows for freedom of shape layout and high workability.
It is best suited for individual sound source countermeasures, effectively blocking noise generated from plants and protecting the surrounding sound environment.
Product Overview
forte
- Excellent sound insulation performance of -30dB by the soundproofing house
- Unit-type soundproofing panels that can be flexibly combined in the planar/height direction, enabling flexible layout according to the needs of the shape.
- The integrated structure of the column steel frame and soundproofing panels will improve construction efficiency and shorten the construction period.
It is especially suitable for individual sound source countermeasures for various types of plant equipment, etc. Easy installation by simply assembling the panels, and the interior space can be widened without the need for pillars. - The panels themselves are high-strength, so the steel frame of the entire soundproof house can be made lighter, reducing costs.
structure

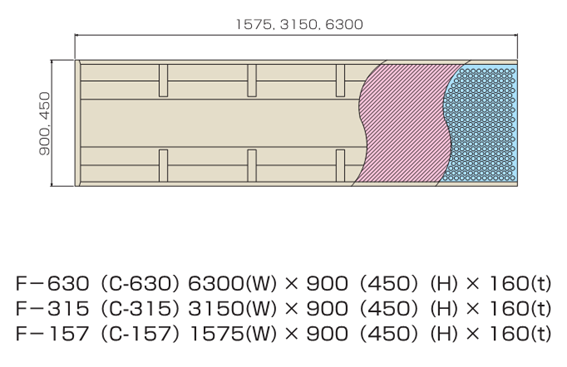

Soundproofing panel Dimensions

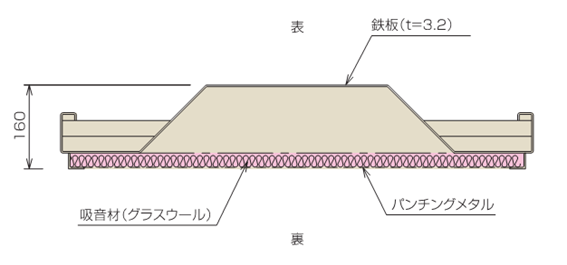

Soundproofing panel Cross section

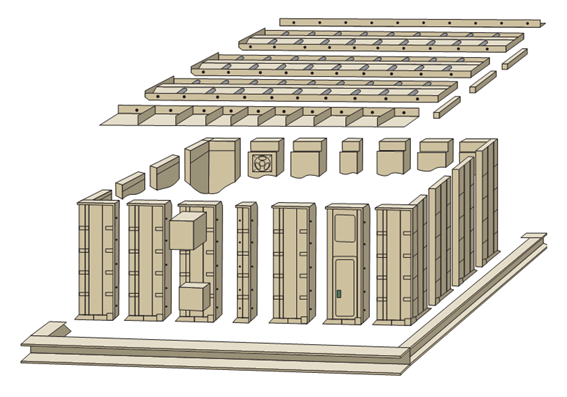

House assembly and configuration

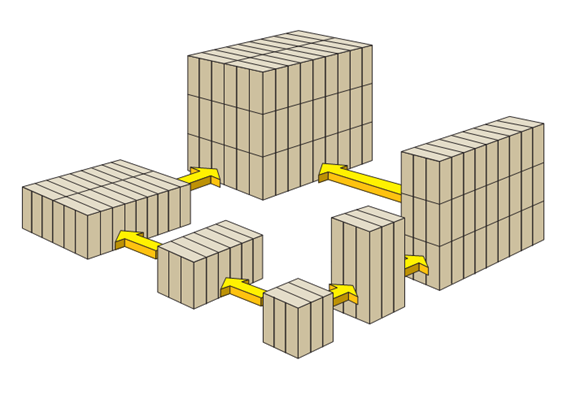

Flexible panel combinations

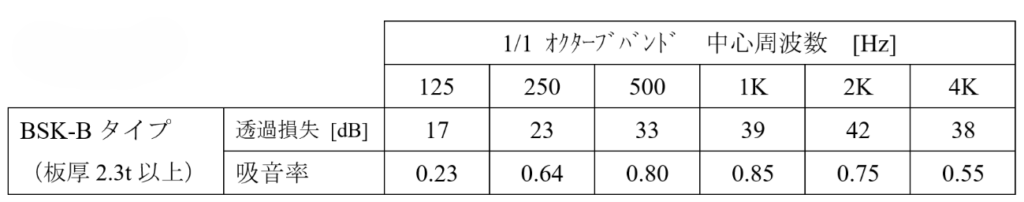

Soundproofing Panel Performance Table
