Product name
Large ceiling fan ~Ryusei
line-up
- Fan diameter 5.0m/4.2m/3.2m
Product Overview

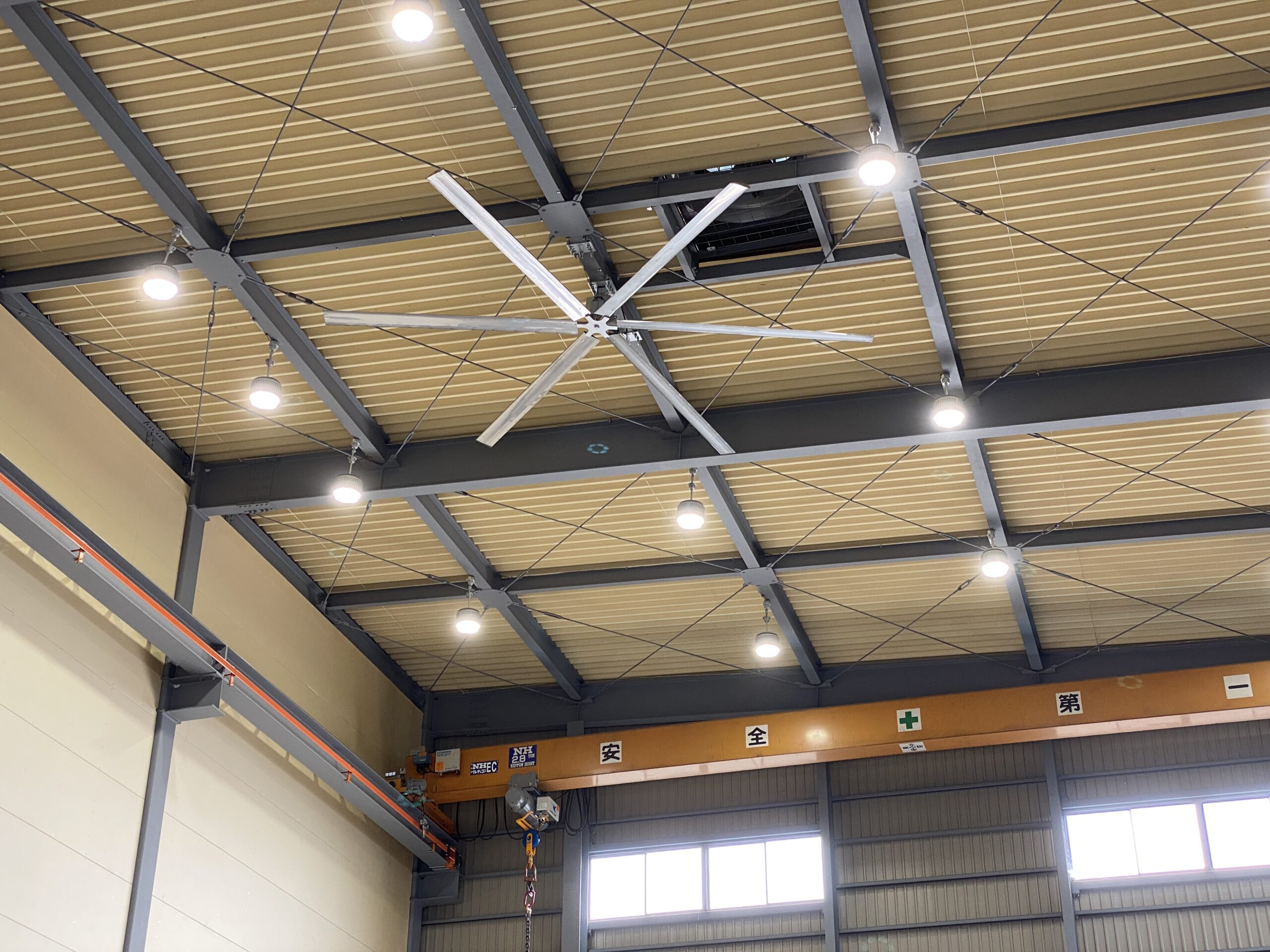

Large ceiling fan that circulates air inside a building.

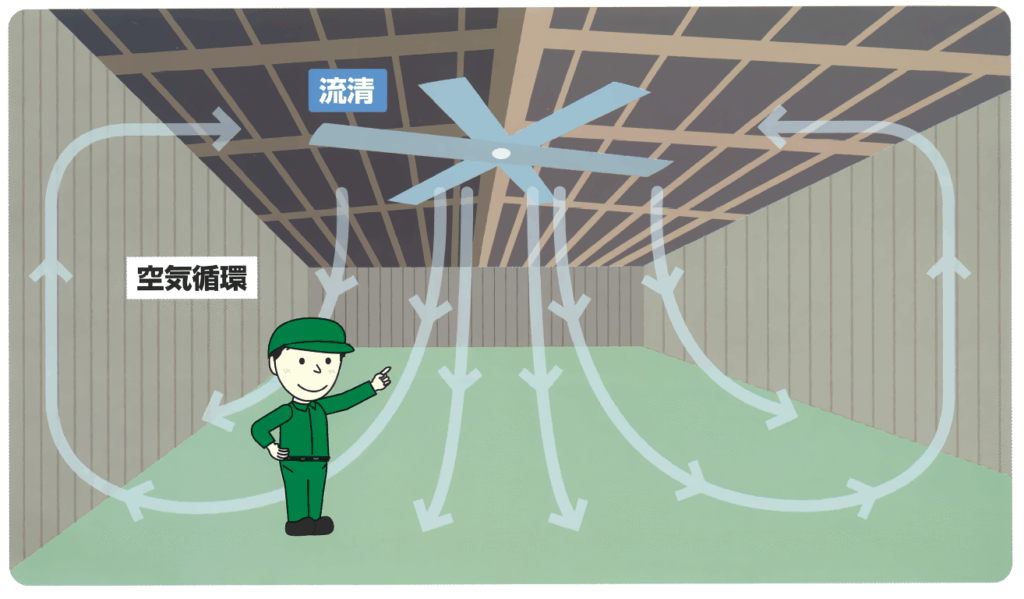

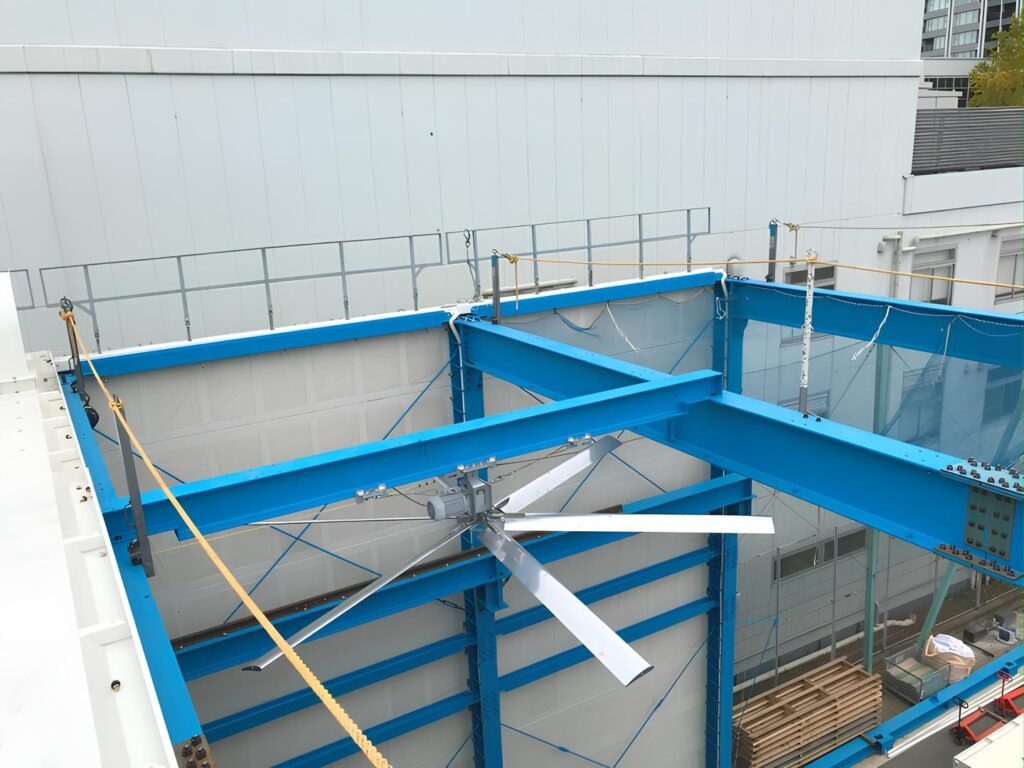

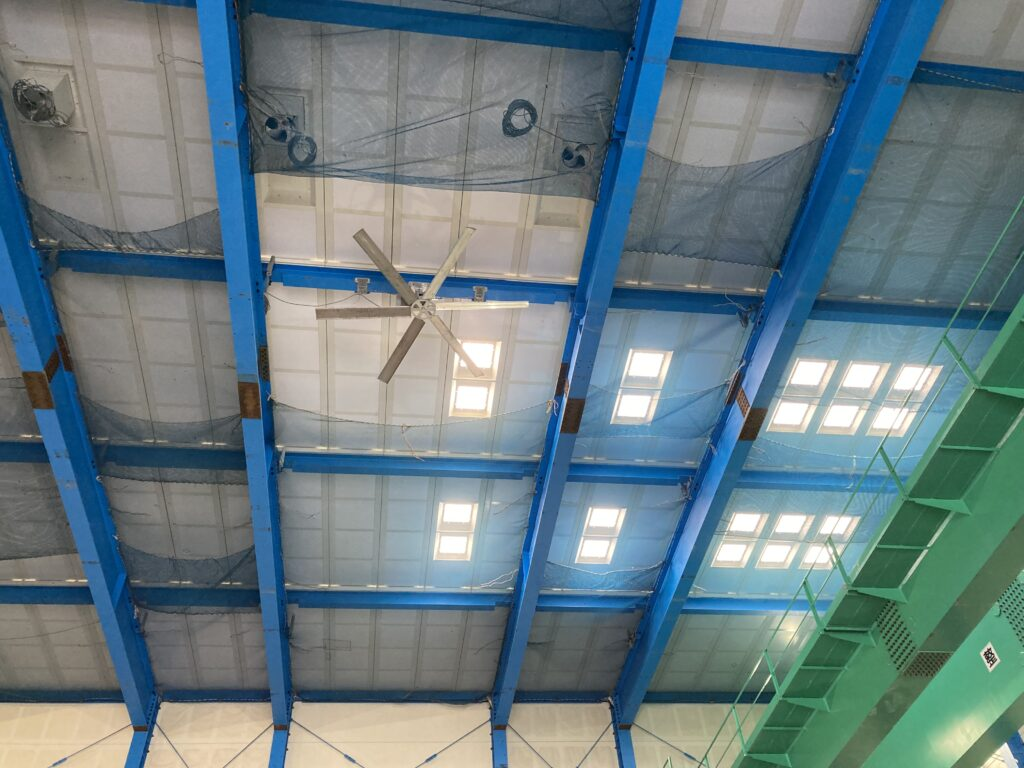

Installed on the ceiling of a soundproof house, it circulates air inside the house and efficiently generates a downward air flow.
forte
- Efficiently generates downdrafts with 3 large sizes x 6 special blades that can be selected to suit the space.
- Gentle breeze that reaches far and creates a comfortable space
- It generates wind of approximately 1 m/s (directly below) and lowers the temperature experienced by workers, making it effective in preventing heat stroke.
- It is maintenance-free with a structure that combines safety and energy saving.
structure

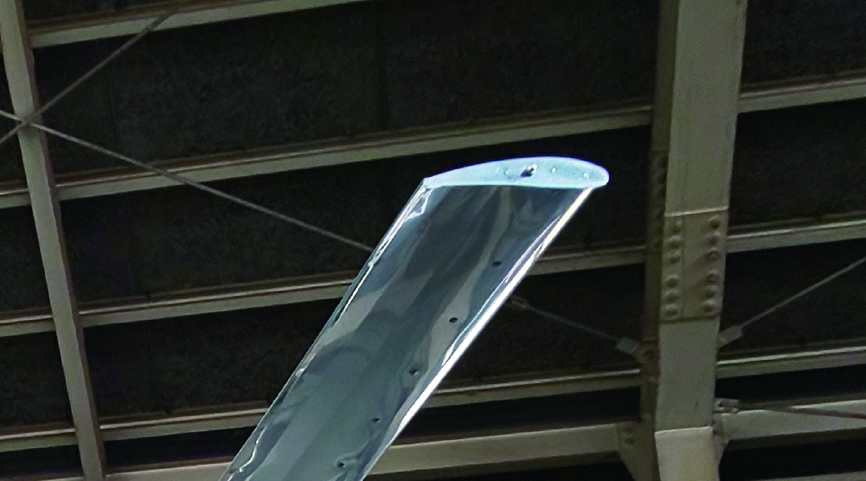

- Hollowing the inside of the blades reduces weight (reduces the load on the structure to which they are attached).
- The waterproof rating of the motor used is IP65, and stainless steel is used for the blades to provide high durability without deterioration due to rust or corrosion.

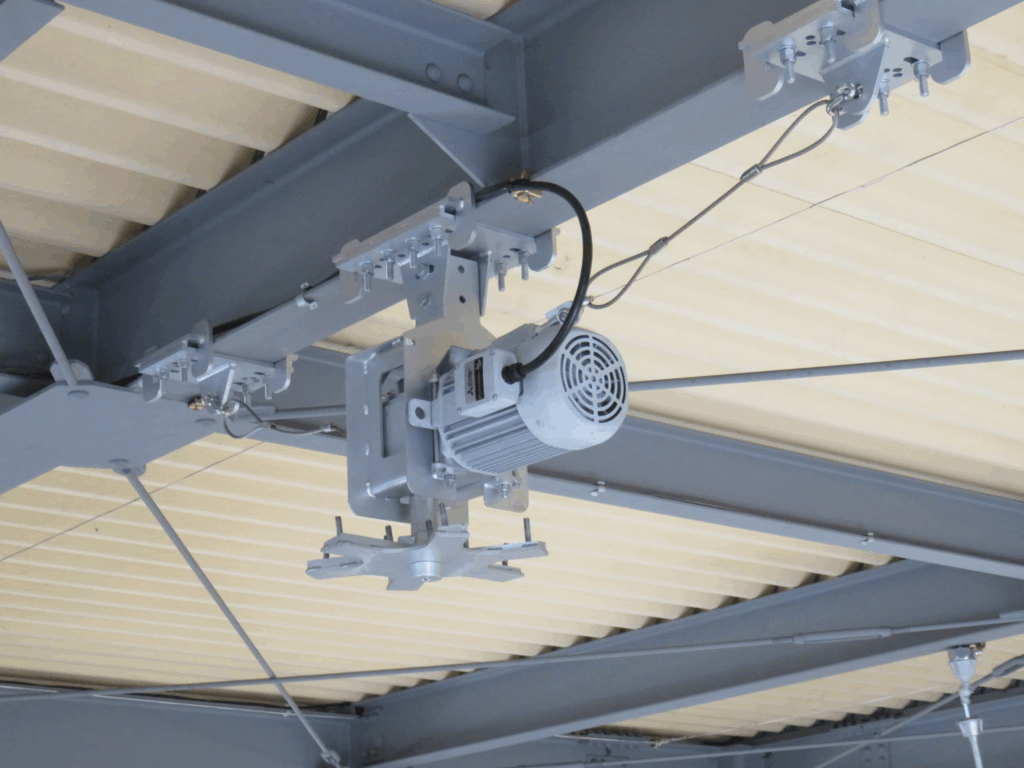

- For installation, the “Hyper Rod Nut,” a loosening nut used in public works projects, was used, plus two wires to connect the ceiling beam to the main unit,
- This prevents the equipment from falling even in the unlikely event of a fall. Furthermore, even if the blades break, they are designed to prevent the broken blades from falling.
Video materials (using YouTube)
Ideal for situations such as
Are you troubled by the air quality in your soundproof house?
In the summer, the soundproof house is filled with heat, and the workers are worried about heat stroke!
We want to diffuse air stagnant in the house locally!
The large ceiling fan - Nagare Sei - solves this problem with a gentle breeze that reaches far and wide.
It is effective in preventing heat stroke because it lowers body temperature.
It can also be used throughout the year, for example, to circulate air inside a house that is cold in the winter to maintain a constant temperature.
It is energy-efficient, environmentally friendly, and cost-effective.
