YS construction method (anti-vibration flooring for floor impact noise reduction)

YS METHOD

Product Overview

Product name

YS construction method Vibration-isolating floor for floor impact noise reduction

variation

  • Dry YS Method
  • Wet YS Method

point

The vibration-absorbing effect on the beams, which are a solid part of the frame structure, is
Due to the structure of placing high "ball damper",
Vibration-isolating floor system to reduce floor impact noise.

forte

  • H-shaped steel is used as the base material for general dry construction to ensure support on the frame beam.
  • Floor impact noise can be further reduced by using the YS construction method with a concrete floating floor (wet type).
  • The YS construction method was developed for heavy floor impact noise control and has been used in gymnasiums, fitness centers, dojos, and other facilities.

structure

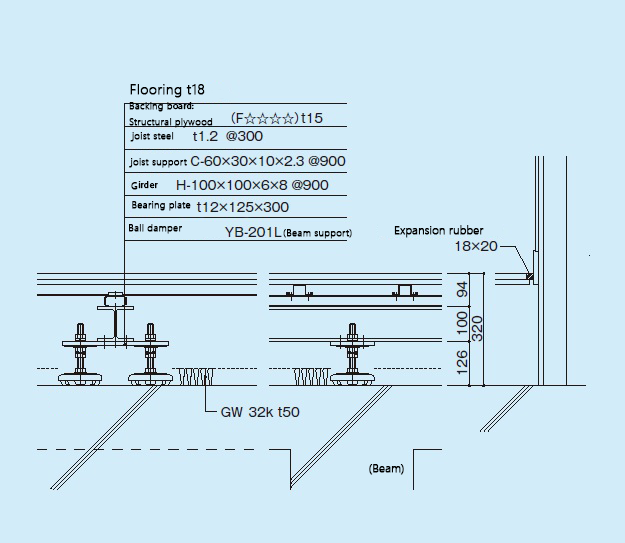

Dry-type YS construction method
　This is a common YS construction method using H steel.
　Performs to heavy floor impact sound levels LH35-45.
　(Varies depending on the structure of the building frame)

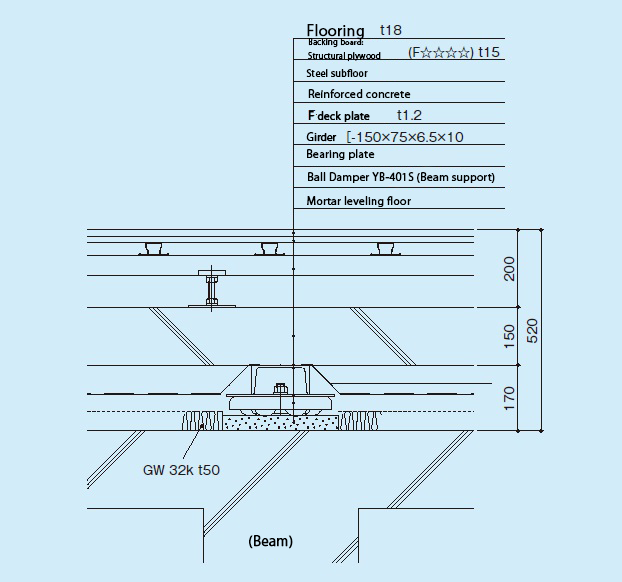

Wet YS method
　For quieter spaces, the wet YS method is recommended.
　It is also possible to ensure the performance of heavy floor impact sound level LH-30.
　(Varies depending on the structure of the building frame.)

Example of Construction
