Atlas (air spring vibration isolator)

ATLAS

Vibration isolators using air springs. It can be used for various applications such as high-speed presses, small testing machines, and weaving machines.
The minimum configuration consists of a set of four units and incorporates all the necessary air springs, leveling and vibration damping devices required for air spring vibration isolation systems.

Product Overview

Product name

atlas

model number

  • VAA-2T
  • VAA-5
  • VAA-10
  • VAA-15
  • VAA-20
  • VAA-30
  • VAA-40

special characteristic

  • Air springs are used as the elastic body and have higher anti-vibration performance than coil springs or rubber anti-vibration devices.
  • A wide variety of product lineups are available to accommodate payloads from 20 kN to 400 kN.
  • The amplitude can be easily controlled by an automatic damping device.
  • Even if the load on the surface supported by the vibration isolators is unbalanced, the height can be kept constant by the leveling mechanism of each isolator.
  • Air sources are available in factory line piping or with portable compressors.

structure

elements

A set of four units, each with a built-in air spring, leveling device, and vibration damping device, is installed at the foot of the machine.
機械の形状や仕様により、台数を増やすこともできます。

principle

Vibration isolators using air springs as the elastic body.
Four air springs support and isolate the equipment, reducing the transmission of equipment vibration to the surrounding area.

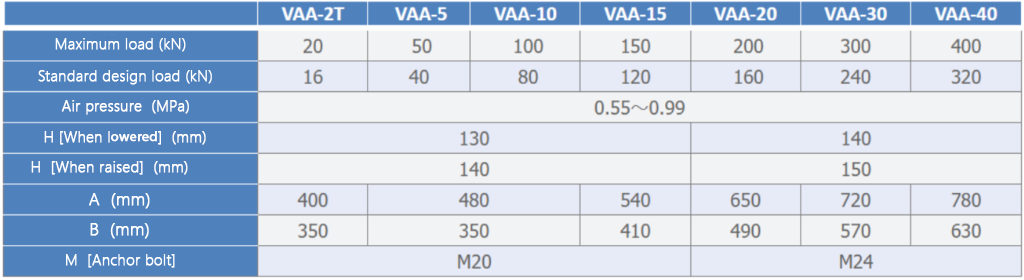

(technical) specification

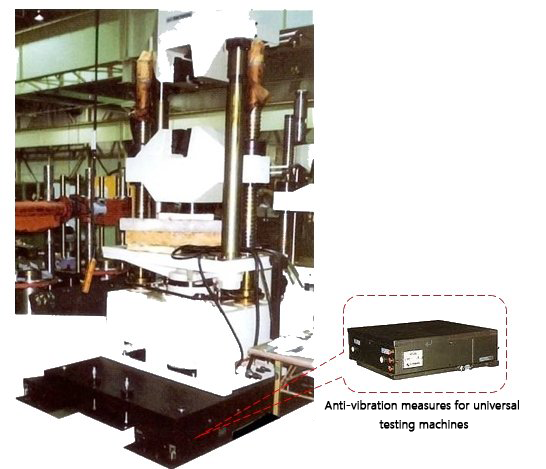

Example of Construction

Example of press vibration isolation

Loom Vibration Isolation Example

Request for brochure, inquiry

showroom

The Atlas VAA-5 is on display at our Nagoya showroom, so you can check out the actual machine.
If you would like to visit, please fill out the linked form.
