Floor mate (staircase, OA underfloor, etc.)

FLOOR MATE

Product Overview

This device reduces shaking of floors, stairs, and corridors caused by walking, external traffic vibration, etc.
The ultra-thin size fits under OA floors and is easy to install, so vibration countermeasures can be taken even after the building has been occupied.

Product name

floor mate

model number

  • FM-30

special characteristic

  • It is maintenance-free, so there are no running costs after installation.
  • The system can be installed under an OA floor, so there is no need to change the layout.
  • Effective for vibration issues arising from change of use.
  • Ultra-thin and compact vibration control device. (560mm x 400mm x 44mm)
  • Lightweight and compact for easy installation.
  • Installation is by anchoring or gluing to the slab surface. It can also be used simply by placing it on the slab.
  • The system can be finely tuned to suit the installation location, resulting in higher effectiveness.
  • It works even with small acceleration such as walking vibration, traffic vibration, etc. to reduce vibration.
  • The damping system uses a new viscoelastic damper, so there are no oil leaks, etc.

Video materials (using YouTube)

You can see the effect of floor mates.
Two water tanks, one on the left and one on the right, shown in the video, are vibrated in the same way by a vibration exciter.
The water in the one without the Floormate is shaking, but the one with the Floormate is hardly shaking at all. By tuning to the natural frequency of the stand on which the aquarium is placed, you can see that the Floor Mate is absorbing the vibration.

structure

elements

To make it ultra-thin, Floormate uses a cantilevered structure.
The mass is held in place by a coil spring and vibrates up and down at the fulcrum to absorb vibrations from slabs and other objects.
By moving the adjustment mass, the frequency can be easily tuned.

principle

Install Floormate for the number of units that will have a mass ratio of approximately 3-5% to the vibration target, such as a slab or stairway.
By tuning the vibration frequency of the Floormate to that of the target structure, the Floormate resonates and absorbs the vibration energy of the target structure, thereby reducing vibration.

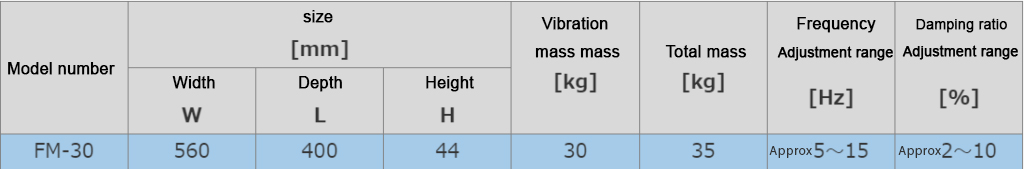

(technical) specification

Example of Construction

Example of installation on floor (under OA floor)

Example of underfloor (lower floor ceiling) installation

Example of underfloor (lower floor ceiling) installation

Case Studies

Example of Walking Vibration Countermeasures I

Walking Vibration Countermeasures Case Ⅱ

Example of railroad vibration countermeasures

Examples of Traffic Vibration Countermeasures

Example of stair climbing vibration countermeasures

showroom

The ultra-thin vibration-damping device (TMD) "Floor Mate", which can reduce vibration by simply placing it under OA floors and other narrow spaces, is on display in the showroom in the basement of the Tokyo office, so visitors can experience its vibration-reducing effects for themselves.
If you would like to visit, please fill out the linked form.
A representative will contact you shortly.

Download Technical Information

Floor Mate [FM-30] External view (pdf)

Floor Mate [FM-30] External view (CAD)

You can download the above technical information from My Page. Please use it for your design drawings.
Go to My Page

Please note that you must be a registered member to log in to My Page. Please register below.

(You can download pdf data of the exterior view of Server Utena and Floor Mate.)

(In addition to regular membership materials, you can download dwg and dxf data for seal hangers and floor mates.)
